Theft Deterrent Tamper Switch (Door Trunk)

This category on the website [ Switches and Wiring ] we are giving you all of the information related to the individual switches in the Buick Turbo Regal, along with the associated wiring, connector plugs, etc.

.

VEHICLE APPLICATION:

Buick Regal, T-Type, Turbo T, Limited, Grand National, GNX

SWITCH NAME:

Theft Deterrant Switch
theft warning system

PURPOSE OF SWITCH:

Trunk Tamper Switch:
sets off system when trunk is opened

Door Lock switch:
arm/disarm switches in the door

TURNS ON-OFF / FUNCTIONS / USED WHEN:

armed when doors or trunk is opened

LOCATION IN VEHICLE:

Door Lock switch:
on the lock rod, key cylinders

Trunk Tamper Switch:
center of trunk, near the key cylinder

ORIGINAL GM PART NUMBER:

?

SWITCH / BASE COLOR:

metal

CONNECTOR PLUG COLOR (SWITCH SIDE):

plastic, metal ring (the theft deterrent diode, in driver door)
metal (trunk switch)

WIRES ATTACHED (SWITCH SIDE):

n/a

CONNECTOR PLUG COLOR (HARNESS SIDE):

black

NUMBER OF WIRES ATTACHED (HARNESS SIDE):

2 (door)
1 trunk

COLOR & PURPOSE OF (HARNESS SIDE) WIRES:

DOOR LOCK SWITCH (theft deterrent diode):

diode is on the LH (DRIVER) SIDE only:

Tan, goes to (junction) to LH (driver) side front door jamb switch
(junction also connects to theft deterrent controller [ignition key warning])

light blue-black, goes to (junction) to theft deterrent controller (“J”) [arm and tamper input]
(junction also connects to light blue wire to LH [driver] side door lock cylinder switch [“forced”])
(junction also connects to light blue-black wire to trunk lock tamper switch [“A”])
(junction also connects to light blue wire to RH [passenger] side door lock cylinder switch [“forced”])

TRUNK TAMPER SWITCH:

light blue-black (“A”), goes to (junction) to light blue wire to (junction) to light blue-black wire to LH (driver) side door lock cylinder switch [“forced”]
(junction connects to theft deterrent controller {“J”} [arm and tamper input])
(junction connects to RH (passenger) side door lock cylinder switch [“forced”])

black wire to ground

.

OTHER NOTES:

The door lock Tamper Switches are called “theft deterrent diode” on diagrams.
These are a metal ring with plastic inside (see photo), with 2 wires coming out, surrounded by shrink wrap, and has a black connector plug on the end of the wire.

The door lock cylinder switches “disarm” the system (“disarm input”).

The door jamb switches “arm” the system.
The door jamb switches are the “arm and tamper input”

The trunk lid switch is the “arm and tamper input”

The power door lock switches are the “arm input” for the “lock” side.
The power door lock switches are the “arm cancel input” for the “unlock” side.

There’s a bunch of different connections that intertwine within the factory theft deterrent system.
We’re going to show you the original diagrams for the entire system here as well.

rpo code = UA6, theft deterrent system with starter interupt (vehicle must have power door locks)

[SEE theft deterrent controller module]
[SEE theft deterrent relay]
[SEE anti theft system relay]
[SEE starter interrupt relay]

If the “security” light flashes, the system is not armed. When you get out of the car, lock it using the door lock switch and the light should stay on without flashing, that means it is armed. As soon as the door is closed, the light will go off but the system will remain armed until you unlock it.

[SEE Security dash light]

.

HERE IS HOW A FELLOW BUICK OWNER SAID HIS SYSTEM WORKS:

This is how the factory system works in my car:

1- Doors closed system armed or un-armed: SECURITY lamp off.
2- Doors open system un-armed: lamp flashing.
3- With door open press PDL switch to LOCK doors and arm system: lamp goes from flashing to on steady.
4- With door open press PDL switch to UNLOCK doors and dis-arm system: lamp goes from on steady to flashing.
5- Do step 3 again, to arm system then close doors. System will activate and lamp will go out in 2 seconds.
6- Key unlock from outside dis-arms system. Otherwise lights flash and horn blows if entry is gained by other means: jimmybar, or popping lock cyls on doors or trunk.

.

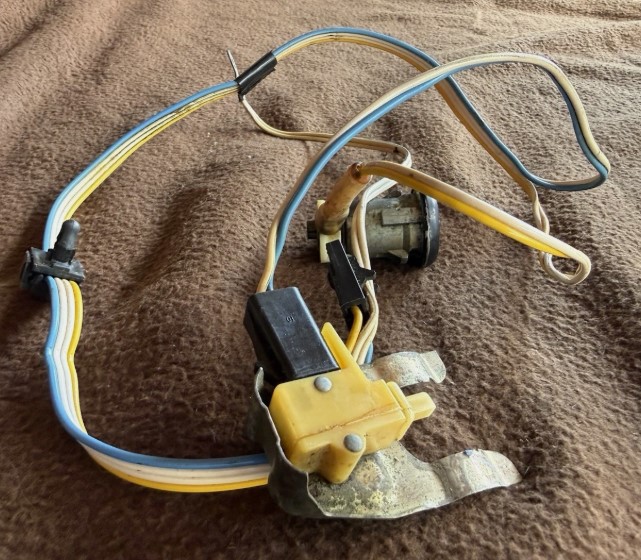

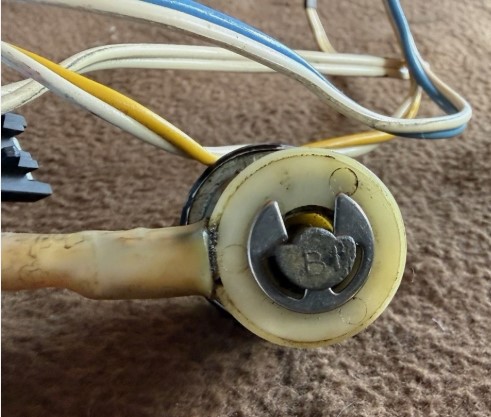

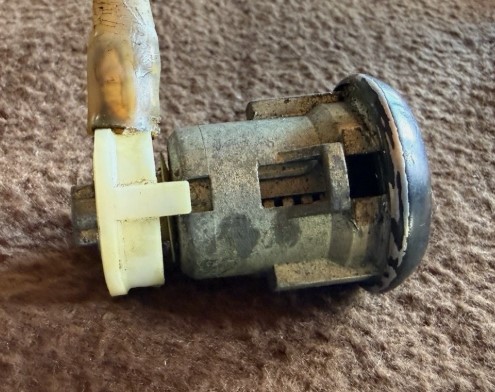

PHOTOS OF SWITCH AND CONNECTED WIRES:
.

.

Here’s all of the Switches in the Buick Turbo Regals:
(you can click these links to go direct to these posts)

* A/C High Pressure Cut-out Switch (Back of Compressor)
* A/C Pressure Cycling Switch (on Accumulator)
* A/C Pressure Line (Under Alternator)
* Blower and A/C Clutch Control Module Switch (HVAC Fan Speed Control)
* Brake Pressure Switch (in Prop Valve)
* Brake Switch (Above Brake Pedal)
* Coolant Fan Temperature Switch (Under Throttle Linkage)
* Cooling High Temperature Switch (Manifold Front Passenger Side; Idiot Light)
* Cornering Light Switch (Regal Limited Models)
* Cruise Control Switch (Lever)
* Cruise Control Brake Switch
* Defogger Control Switch (Rear Defogger Button)
* Dome Reading Lights Switch
* Door Jamb Switch (Both Sides)
* Electronic Air Conditioning Touch Climate Control (Electric Touch A/C)
* Gear Selector Switch
* Glove Box Switch (for Light)
* Hazard Switch (Emergency Flashers)
* Headlight Switch
* Headlight Dimmer Switch (High Beam)
* Hobbs Switch (Digital Dash Cars)
* Horn Button Switch
* HVAC Fan Speed Control Switch (Heater A/C Control Head Blower Switch)
* HVAC Mode Control (Heater A/C Control Head Mode Switch)
* Ignition Switch
* Ignition Key Warning Switch
* Instrument Cluster Dimmer Switch (Dash Lights Brightness)
* Neutral Safety and Backup Light Switch
* Oil Pressure Switch
* Overtemp Hot Switch
* Park Brake Switch (Emergency Brake)
* PowerMaster Brake Switch
* Power Door Lock Switch (Both Sides)
* Power Seat Switch
* Power Window Switch (Both Sides)
* Radio Button (on/off Switch)
* Rear View Mirror Map Light Switch
* Seat Belt Switch
* Sunroof Switch (Astroroof Moonroof)
* Theft Deterrent Warning System Tamper Switches
* Trunk Light Switch
* Trunk Release Button
* Turbo Power Light Switch (Digital Dash Cars)
* Turn Signal Switch (Lever)
* Twilight Sentinel Switch (Rotary Dial)
* Under Hood Light Switch (engine bay compartment)
* Vanity Mirror Light Switch (Passenger Side Visor)
* Wiper and Washer Switch

.
