This category on the website [ Switches and Wiring ] we are giving you all of the information related to the individual switches in the Buick Turbo Regal, along with the associated wiring, connector plugs, etc.
.
VEHICLE APPLICATION:
Buick Regal, T-Type, Turbo T, Limited, Grand National, GNX
SWITCH NAME:
Power Seat Switch
PURPOSE OF SWITCH:
moves the seat forward/back
TURNS ON-OFF / FUNCTIONS / USED WHEN:
when you push the button, it adjusts the seat
LOCATION IN VEHICLE:
interior, on the lower left hand side of the drivers seat
ORIGINAL GM PART NUMBER:
20411769
SWITCH / BASE COLOR:
black, with 7 brass studs
[we have also seen chrome versions, and other colors for non-Grand National vehicles]
CONNECTOR PLUG COLOR (SWITCH SIDE):
see notes below
WIRES ATTACHED (SWITCH SIDE):
n/a
CONNECTOR PLUG COLOR (HARNESS SIDE):
black or white
see notes below
NUMBER OF WIRES ATTACHED (HARNESS SIDE):
8 total
see notes below
COLOR & PURPOSE OF (HARNESS SIDE) WIRES:
orange-black “F”, goes to (junction) black-orange wire to pwr accy circuit breaker
(junction also connects to power door locks)
light green “D”, goes to (junction) to LH front seat motor “B” (forward back motor)
tan “E”, goes to (junction) to LH front seat motor “A” (forward back motor)
dark blue “H”, goes to (junction) to LH front seat motor “B” (front height motor)
dark green “G”, goes to (junction) to LH front seat motor “A” (front height motor)
light blue “B”, goes to (junction) to LH front seat motor “B” (rear height motor)
yellow “A”, goes to (junction) to LH front seat motor “A” (rear height motor)
[this may be the white wire shown in the pic]
black “C”, goes to (junction) to ground
.
.

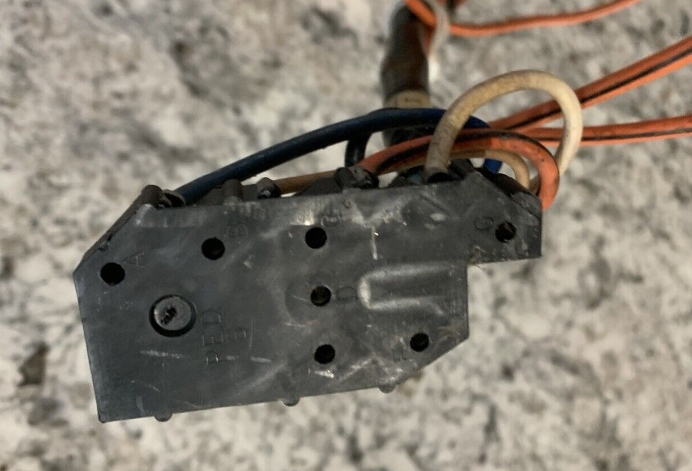

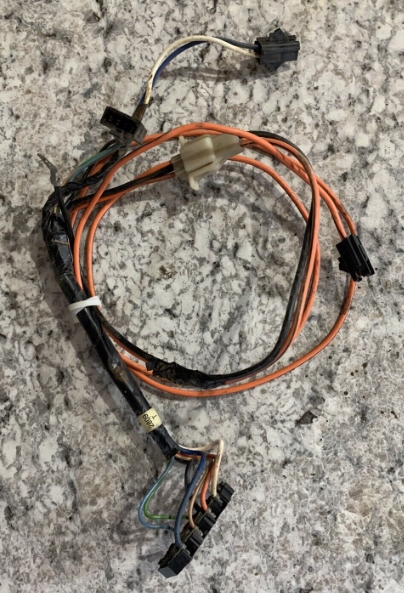

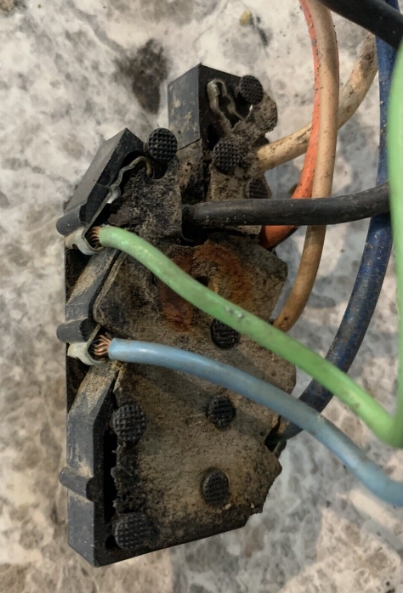

PHOTOS OF SWITCH AND CONNECTED WIRES:
.
.
OTHER NOTES:
Each motor contains a self-resetting circuit breaker.

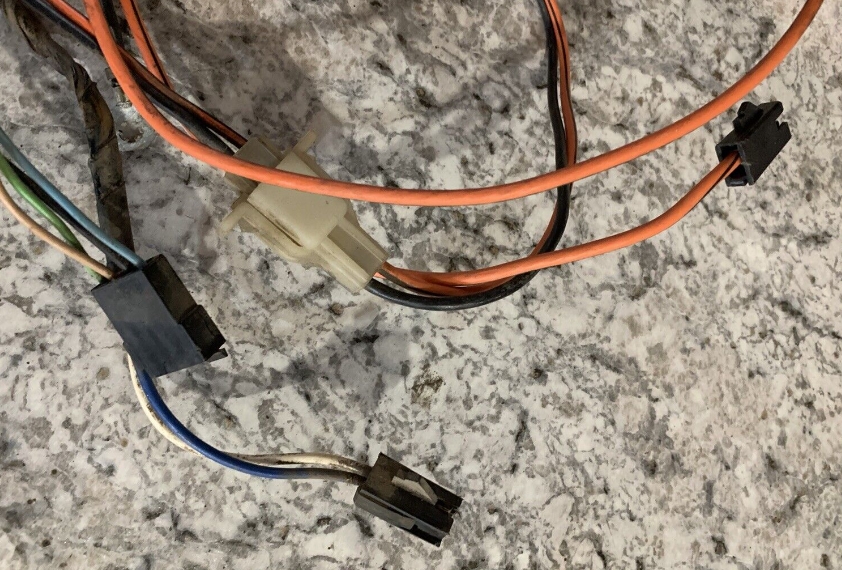

The wire colors specified above are slightly different than the photos shown herein. The photos may be a different year (or other Gbody).

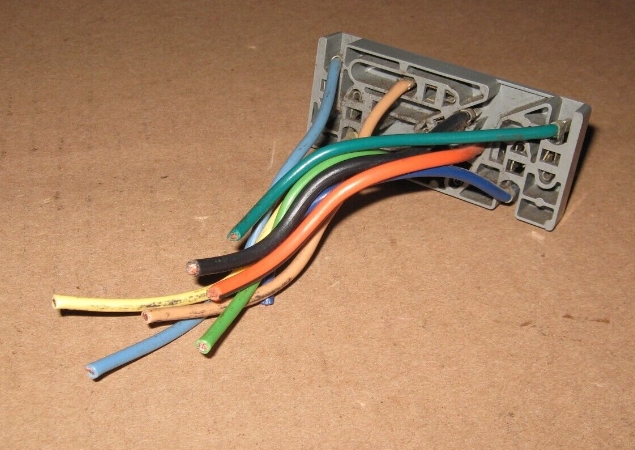

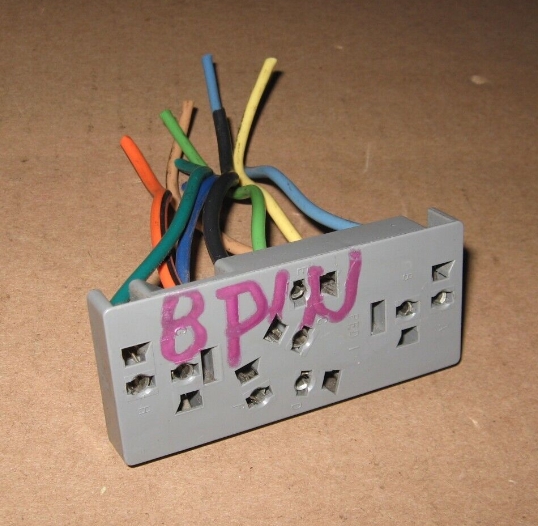

8 wire plug, black connector (attached to seat switch; only 7 actual wires on connector)
4 wire plug, black connector
2 wire plug, white connector
2 wire plug, black connector
.
