Crank Crankshaft Position Sensor

This category on the website [ Sensors and Wiring ] we are giving you all of the information related to the individual sensors in the Buick Turbo Regal, along with the associated wiring, connector plugs, etc.

.

VEHICLE APPLICATION:

Buick Regal, T-Type, Turbo T, Limited, Grand National, GNX

SENSOR NAME:

Crank Crankshaft Position Sensor

PURPOSE OF SENSOR:

determines position of crankshaft within the engine rotation

TURNS ON-OFF / FUNCTIONS / USED WHEN:

used at startup, tells ECM when to fire spark plugs (via CCCI system)

LOCATION IN VEHICLE:

drivers side, at bottom, front of engine

ORIGINAL GM PART NUMBER:

?

SENSOR / BASE COLOR:

black sensor, cast iron bracket, brass bolt

CONNECTOR PLUG COLOR (SENSOR SIDE):

black

WIRES ATTACHED (SENSOR SIDE):

n/a

CONNECTOR PLUG COLOR (HARNESS SIDE):

black

NUMBER OF WIRES ATTACHED (HARNESS SIDE):

3

COLOR & PURPOSE OF (HARNESS SIDE) WIRES:

dark green “A”, goes to ignition module (12v signal power, “H”)

black “B”, goes to ignition module (buffer/amplifier, “G”)

gray-red “C”, goes to ignition module (signal ground, “F”)

.

THINGS TO KNOW ABOUT THIS ITEM:

older versions have a 1 slot crank sensor, while newer versions have 3 slots.
A new holder / bracket is required when switching from the 1 to 3 slot units.

OTHER NOTES:

you can see here: 1984/1985 sensor locations

.

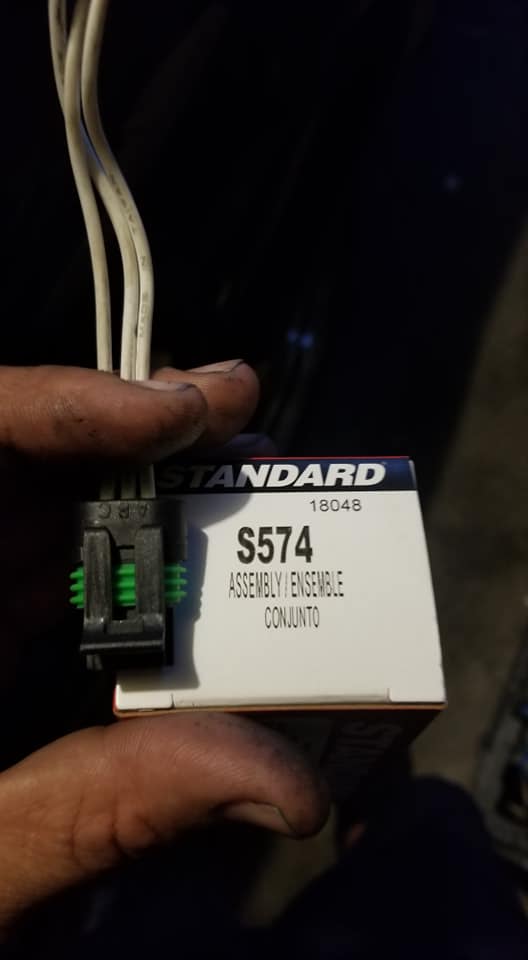

PHOTOS OF SENSOR AND CONNECTED WIRES:
.

crank sensor 86-87

crank sensor 84-85
84-85 ecm im coil wiring

.
Here’s a list of all of the sensors in the Buick Regal:
(you can click the links to go to the one you need info about, after they’re published)

* Air Temperature Intake Sensor (IAT; MAT; ATS)
* Camshaft Sensor (CAM)
* Coolant Temperature Sensor (CTS)
* Crank Sensor
* Knock Sensor
* Mass Air Flow Sensor (MAF)
* Manifold Air Pressure Sensor (MAP)
* Oxygen Sensor (O2, narrowband)
* Throttle Position Sensor (TPS)
* Turbo Boost Gage Sensor
* Twilight Sentinel Photo Cell Sensor
* Vehicle Speed Sensor
* Wideband Oxygen Sensor (WBO2)

.
